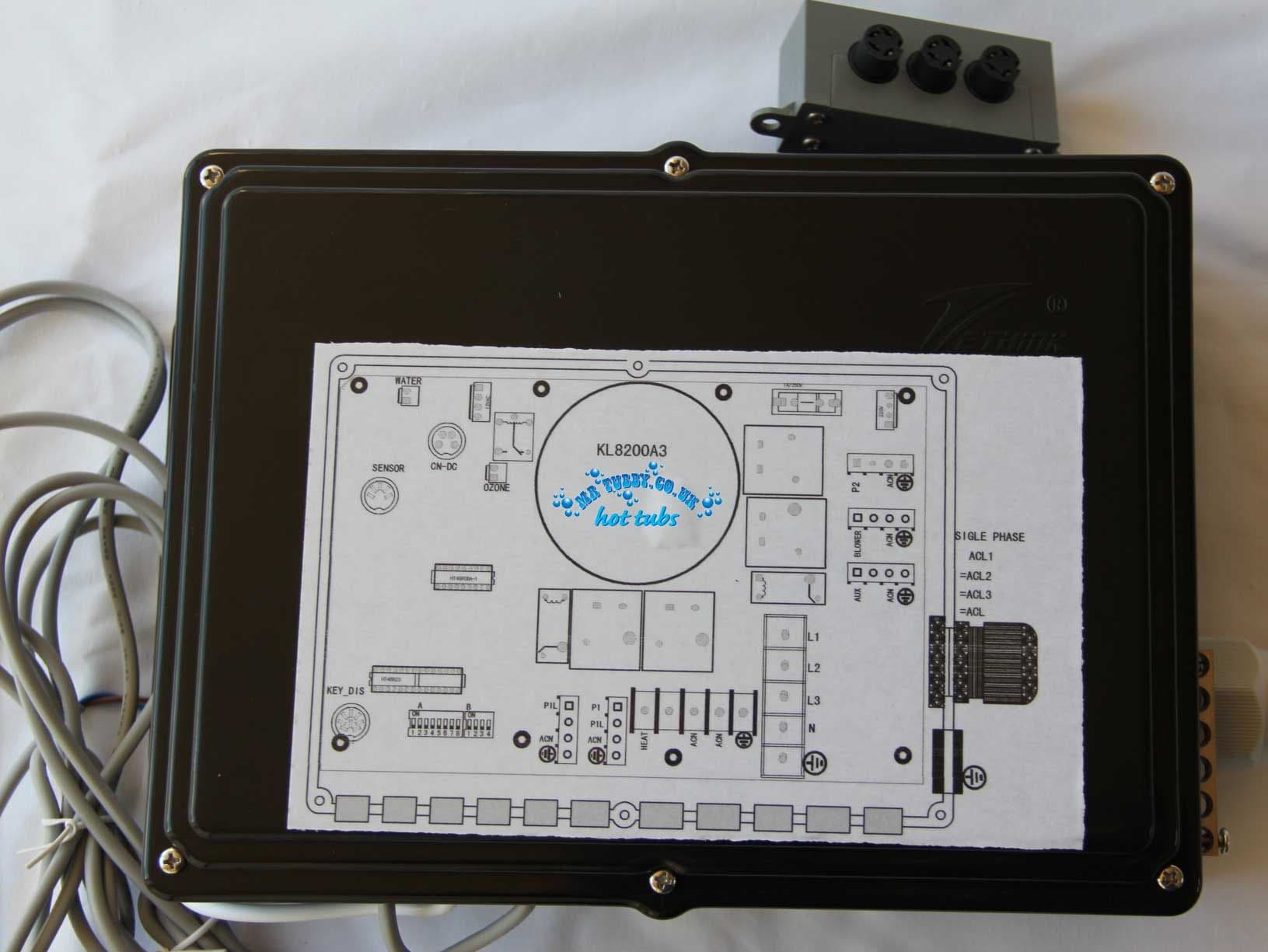

ETHINK KL8200
A popular pack fitted to many Chinese hot tubs since 2012.
The function summary
1. Plug-and-play mode is to get the easy operating and easy installation.
2. Three working modes: Normal /Standard Mode, Energy saving/Economy Mode and Filtering /Sleep Mode.
3. The clock display and setting of circulation-cleaning for 24 hours
4. Max 3 KW of the heater, water temperature display and setting function.
5. 2 surfing pumps and 1 circulating pump (or 1 surfing pump and 1double speed pump) and 1 blower.
6. Synchronous changing color with multiple lights and fixed color Light and Ozone antivirus system.
7. Automatic water frozen preventing
8. Double color buttons backlighting
9. Optional inputting about one-phase, three-phase or dual 110V, optional outputting about 110-120VAC or 220-240VAC
10. An extra power output, it can be used for DVD/TV or others.
11. Switchbank, selecting the different functions.
12. The protection of overvoltage and undervoltage
13. Low-voltage (Light and Ozone) overcurrent protection
14. Overcurrent protection of circulating pump
15. Error code hinting
