ETHINK KL8200 - CHINESE HOT TUB SPA Circuit Board

ETHINK KL8200

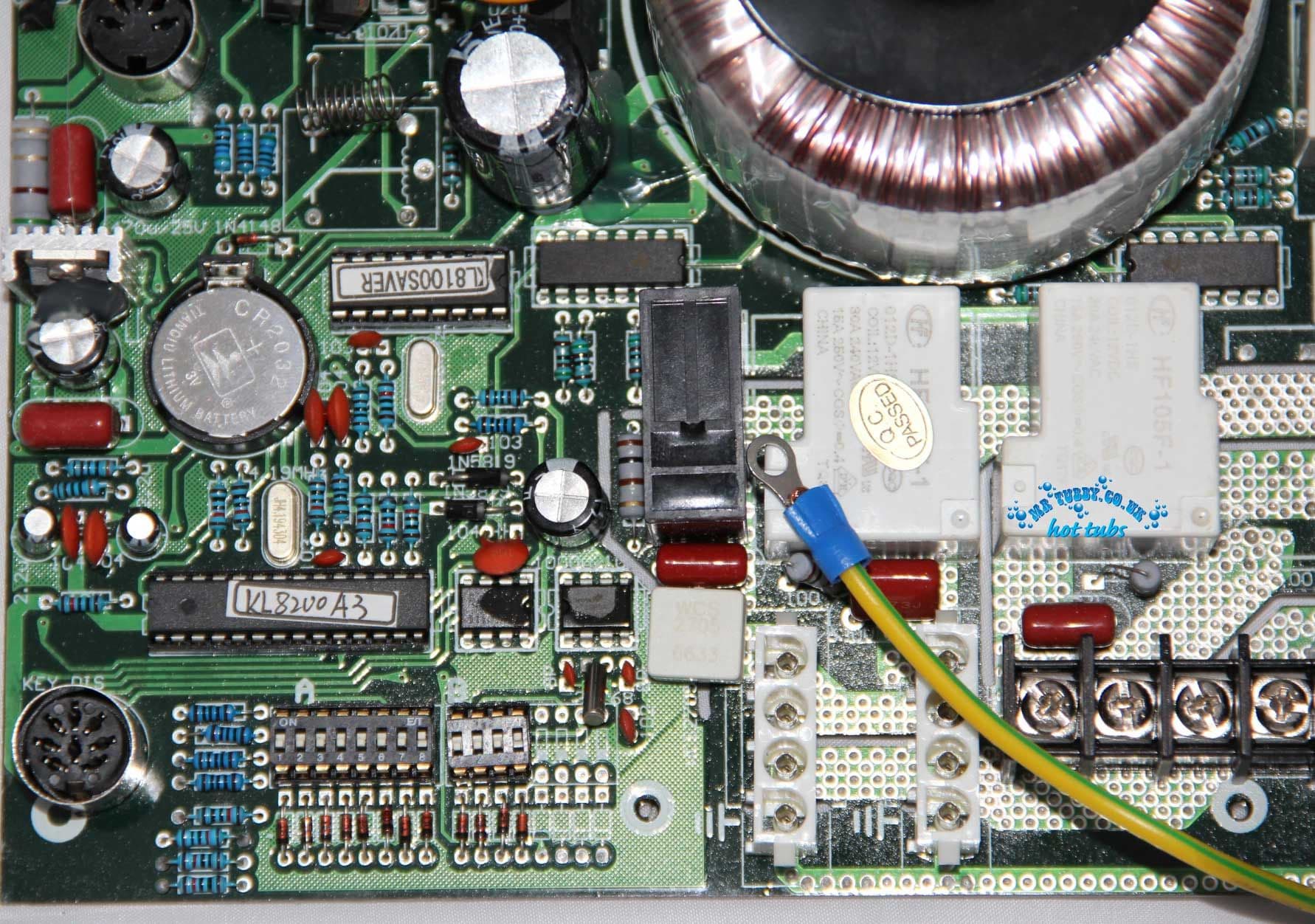

This is the only circuit board in this E-Think system unlike their previous packs that had two (relay board and processor board).
A very easy board to swap as they have the 4-way amp plugs like used on Balboa packs, so unplug, swap boards and plug back in the equipment.

Please note - due to the nature of fitting a circuit board we do not accept returns on such. All boards have been tested prior to shipping.

A popular pack fitted to many Chinese hot tubs since 2012.

The function summary

1. Plug-and-play mode is to get the easy operating and easy installation.

2. Three working modes: Normal /Standard Mode, Energy saving/Economy Mode and Filtering /Sleep Mode.

3. The clock display and setting of circulation-cleaning for 24 hours

4. Max 3 KW of the heater, water temperature display and setting function.

5. 2 surfing pumps and 1 circulating pump (or 1 surfing pump and 1double speed pump) and 1 blower.

6. Synchronous changing color with multiple lights and fixed color Light and Ozone antivirus system.

7. Automatic water frozen preventing

8. Double color buttons backlighting

9. Optional inputting about one-phase, three-phase or dual 110V, optional outputting about 110-120VAC or 220-240VAC

10. An extra power output, it can be used for DVD/TV or others.

11. Switchbank, selecting the different functions.

12. The protection of overvoltage and undervoltage

13. Low-voltage (Light and Ozone) overcurrent protection

14. Overcurrent protection of circulating pump

15. Error code hinting
