WHIRLPOOL LX H15-R2 Heater from Mr Tubby Ltd
This heater is used in many chinese spas and baths (winer amc, jazzi, monalisa, JNJ) for water heating and can be used as a direct replecement or for similar replacement for other spa companies. Now used to replace the Rooster Heater as these are no longer manufactured. Call if you need advice.
Built in pressure to prevent heating without adequate flow.
Red LED to show when heating.
Over temperature reset button.

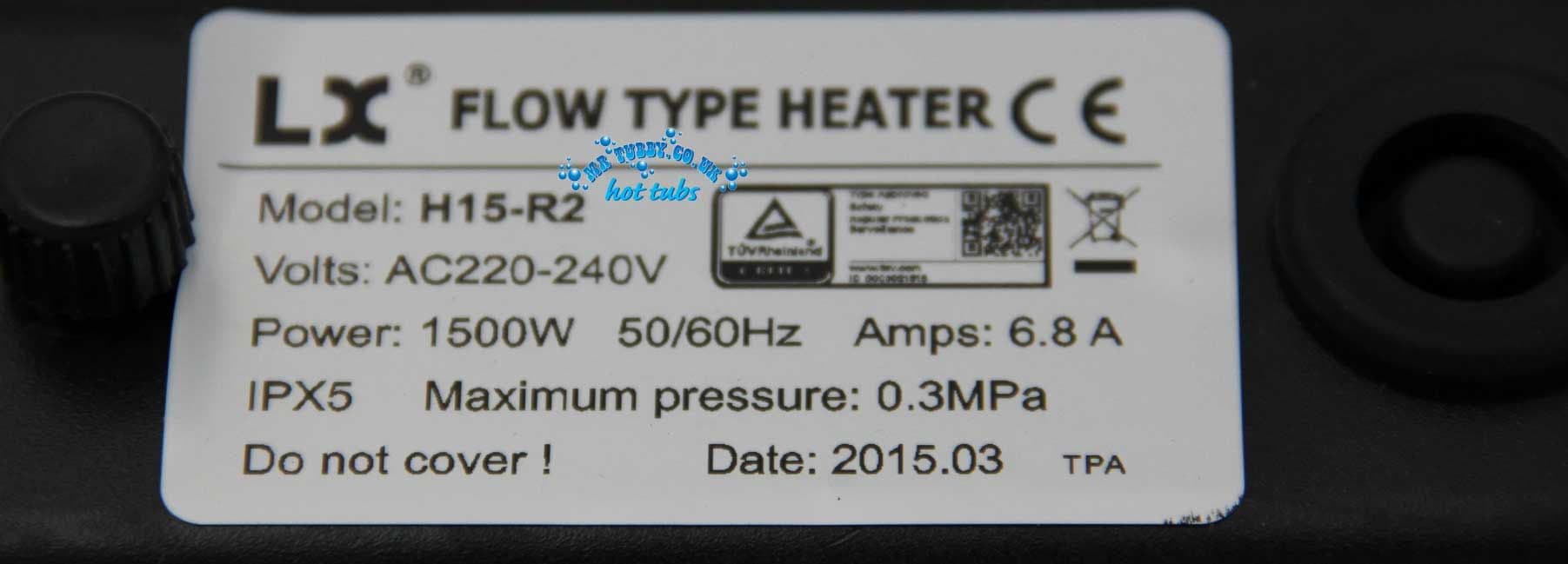

230V VOLTS
50HZ
1.5KW 1500w
1.5" PLUMBING CONNECTION

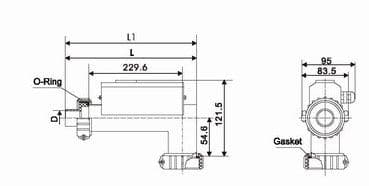

Dimensions:
L = 255mm
Dia = 50.8mm
Connector size D = 1 1/2 inch (48.5mm pipe outside diameter)
L1 = 295mm
