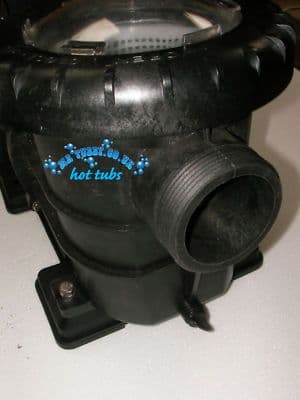

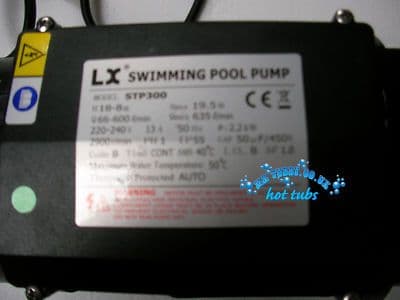

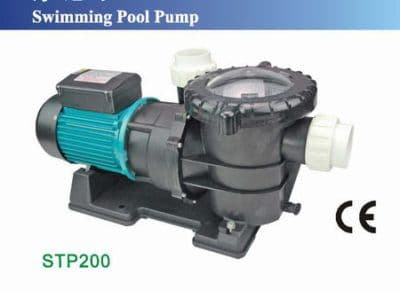

WHIRLPOOL LX STP300 3HP SWIMMING POOL PUMP from Mr Tubby Ltd
WHRILPOOL LX Features :
Pump STP series is most our most mature swimming pool pump and is approved by customers. The pump casing applies efficient structure design with max flow, max head and low noise. Cap and filter is easy to install and unload. Liquid part is made of high reinforce engineering plastic. Applied mechanical seal type ensures watertight continuous operation. The high reinforced engineering plastic base is both vibration and corrosion resistant. STP series is the preferred product for a sand filter and swimming pool.
Motor : Air cooling motor is suitable for Europe. The frame material is aluminum. Insulation class F, protection IPX5, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.
Filter: 2.2 litre
Certificate : 1CCC Safety certificate
2CE certificate in EU.
3TUV certificate in Germany.
4RoHS approval
Self-priming : non-self priming performance
Application:
1. Pressure boosting for medium/large SPA pool and cleaning system of jetted bath tubs, spa pools.
2. Water circulation in a fishery.
3. Decorative pool, water display, water processing.
4. Weak corrosive liquid (weak acid and weak alkali without solid granules. Liquid temperature: +5-60.
Selection notice:
1.Size of pools/request current/pressure etc.
2.Applied region’s voltage and frequency
3.Applied region’s request for safety certificate.
4.The fitting size.
MODEL NO. kw / HP
m
L / min
mm
mm
L
kg
STP35 0.25 / 0.35
8
160
48.5 or 50
470*180*295
1
6.8
STP50 0.37 / 0.50
10
210
48.5 or 50
470*180*295
1
7.2
STP75
0.55 / 0.75
10.5
240
48.5 or 50
495*180*295
1
8.9
STP100
0.75 / 1.00
11
275
48.5 or 50
495*180*295
1
9.5
STP120
0.90 / 1.20
13
300
48.5 or 50
495*180*295
1
10.5
STP150
1.1/1.50
16.5
430
48.5 or 50
600*280*345
2.5
14
STP200
1.50 / 2.00
18
520
48.5or50or60.3 or 63
600*280*345
2.5
15.5
STP250
1.85 / 2.5
19
600
48.5or50or60.3 or 63
600*280*345
2.5
16.7
STP300
2.2/3.0
19
635
48.5or50or60.3 or 63
620*280*345
2.5
18
This item will be despatched via Courier once payment has been received
PLEASE provide a contact number for the courier! Failure to do so will delay delivery.
This price is for delivery to the UK Mainland ONLY. This excludes Northern / Southern Ireland, Scottish Highlands & Islands, Isle of Scilly, Isle of Man & any offshore destinations. We can deliver to these areas but the cost of delivery will be more expensive.
Also worldwide courier available.
Please email us for a quote.
